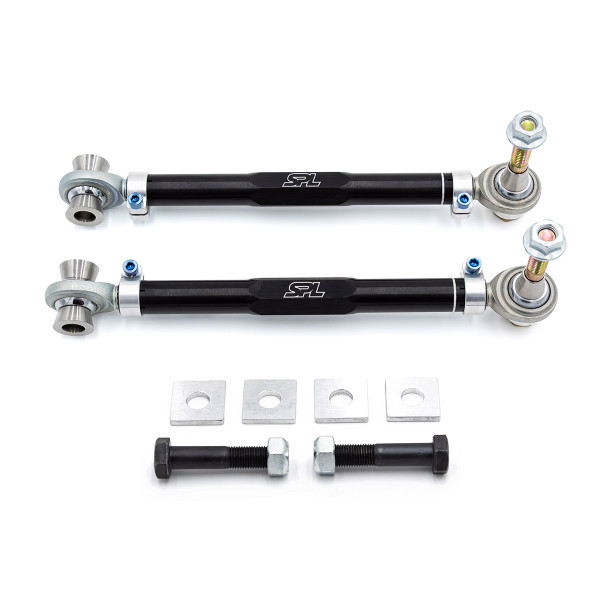

Rear Toe Arms with Eccentric Lockouts for VB WRX

SPL Rear Toe (RTAEL) Arms for the Subaru WRX (VB) reduce some of the unwanted bumpsteer due to the compliant OEM rubber bushing deflecting. This gives a sharper, more responsive turn-in by increasing the yaw rate to help combat understeer while also giving a more linear, predictable handling behavior. For those lowering, or even raising your WRX, our arms also have a huge toe adjustability range needed to accomodate proper alignments.

This kit (RTAEL VB) also includes our eccentric lockout kit which deletes the OEM eccentric bolts, which are prone to slipping with aggressive driving and additional grip. This protects your alignment (and track days) from unwanted change due to bolt slip as a result.

For advanced setups, pairing our rear traction arms with our rear toe arms opens the door to making changes to the rear bumpsteer curve to dial-in the specific handling behavior you prefer: more rear steering to combat lazy turn-in, more neutrality to improve tire wear and stability, or simply retain the OEM behavior at most ride heights.

Benefits

• Sharpened Response and Reduced Understeer
• Eliminates Eccentric Bolt Slip and Resulting Alignment Change
• Lightweight: 1.45 lbs (0.66 kg) per Side (25% Lighter than OEM)
• Improves Handling by Reducing Unwanted Toe Change
• Additional Bumpsteer Tuning (with RTR VB)
• Maintenance-Free, US Made, PTFE-Lined FK Bearings

Materials

• 6061-T6 Hollow Aluminum Arm and 360° Clamps
• 304 Stainless Steel Spacers
• Ti-6Al-4V Titanium Hardware (Anodized Blue)

Noise, Vibration, and Harshness (NVH)

The SPL rear toe arms are not a significant contributor to NVH. The minimal amount of road noise is appreciably dampened by the large OEM subframe bushings. If you've upgraded to solid subframe mounts then a small amount of road noise can be contributed, particularly over certain types of surfaces.

Featured On

Confirmed Applications

2022+ Subaru WRX (6MT and CVT)

2020+ Subaru Outback

2020+ Subaru Legacy

2017+ Subaru Impreza

2019+ Subaru Forester

2018+ Subaru Crosstrek

Replaces OEM Part Numbers

This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.

Subaru
20250-FL010

Installation Instructions

SPL Rear Toe Arms for Subaru WRX (VB) Install Instructions
