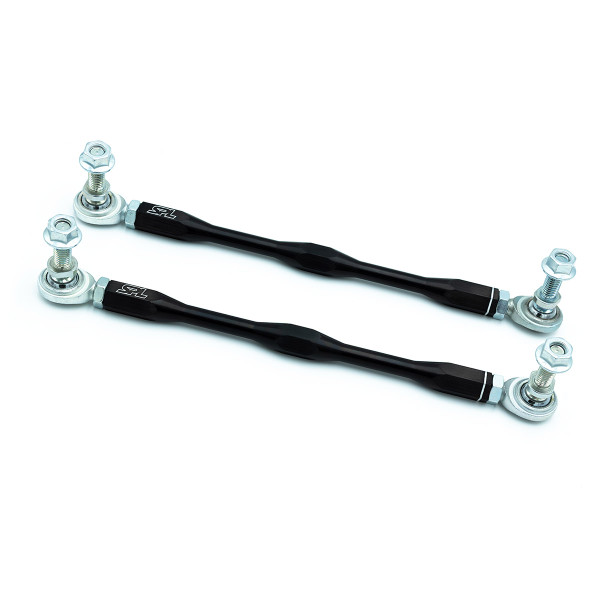

SPL front adjustable swaybar endlinks for the Toyota GR Corolla feature massive PTFE-lined FK 1/2" bearings to provide the highest load capacity for use with stiffer aftermarket sway bars. Custom heat-treated chromoly high-misalignment studs allow for extreme articulation angles (up to 65°) to prevent endlink bind when used with adjustable sway bars.
Unlike OEM, SPL endlinks are adjustable, enabling you to eliminate unwanted preload on the sway bars, set the ideal bar angle, and, if equipped with ride-height adjustable coilovers, properly corner balance your car. The result is better handling, more sway bar tuning options, and less variation in performance between right-hand and left-hand turns. Even stock cars can take advantage of this upgrade by simply dialing out the swaybar preload that occurs when you sit in the car to drive it.
Benefits
- Large Adjustability Range
- Eliminates Swaybar Preload
- Correct Swaybar Install Angle
- Lightweight, High Strength Construction
- Self-Cleaning, US Made, PTFE-Lined FK Bearings
Materials
- 6061-T6 Aluminum Turnbuckle (Anodized Black)
- FK PTFE-lined 65° Studded Rod Ends (F1 Spec, Self-Cleaning)
Easy, On-Car Adjustments
The 6061-T6 turnbuckles use opposing thread patterns (RH and LH) to allow you to adjust the length while it is still installed. Simply turn the turnbuckle to lengthen or shorten the link to the exact desired length and snug the jam nuts.
Suitable for all uses, from daily driver to race car.
Featured On
Tested and used on Limit+1's Gridlife GR Corolla
Sold as a pair. One pair per vehicle.
Confirmed Applications
2023+ Toyota GR Corolla
Replaces OEM Part Number(s)
This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.
48820-0R010
Installation Instructions
