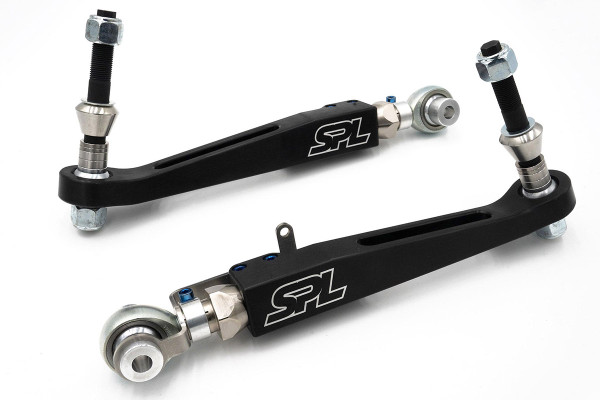

BMW G8X Front Lower Control Arms M3/M4 AWD Version

BMW G8X Front Lower Control Arms (FLCA) provide roll center, camber, and track width adjustment for the G8X BMW M3/M4, and allow for full articulation with the proper ball joint angle. The main arm is slotted to allow the use of pinch bolts, and our rotating clamps on SPL Parts' exclusive Double Adjuster lock down camber and track width settings. No more jam nuts!!  Long gone are the days of fumbling with multiple wrenches to tighten jam nuts in place while trying to keep your bearings oriented correctly. The lower control arms come with a ride height sensor bracket to maintain factory ride height sensor location, regardless of length of the arm to keep those finicky BMW chassis electronics happy.

Our Double Adjuster is machined from 4130 Chromoly; gun drilled to reduce weight, then electroless nickel plated for corrosion resistance. Blue Anodized Titanium hardware shaves even more unsprung weight from the arms without compromising strength.  Stainless Steel spacers are provided to correct roll center for lowered vehicles. The use of FK Rod Ends and High Misalignment Spherical Bearings eliminates the flex and binding found in the OEM control arms, while allowing smooth articulation.

Sold as a pair.

Made in the USA!

BMW G8X Front Lower Control Arms:
•    Lightweight 6061-T6 Billet Aluminum and Titanium Hardware
•    Electroless nickel plated 4130 Chromoly Double Adjuster for quick adjustment
•    Correct ball joint angle for full articulation
•    Rotating Clamp design allows for easy access to lock down alignment settings
•    Low friction 3 piece Teflon lined FK sphericals and Heim joints/rod ends
•    Multiple size Stainless Steel roll center spacers for precise adjustment

Applications:

2022+ G80 and G82 M3/M4 AWD

ONLY FITS AWD MODEL

Need a replacement rod end?

SPL Parts Rod Ends

Installation Instructions:

SPL Parts FLCA G8X IX
